Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction

  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
مكان المنشأ قوانغدونغ ، الصين
اسم العلامة التجارية Goldantell/OEM
رقم الموديل سلسلة GAT-206
الحد الأدنى لكمية 1
الأسعار $680-1,127

اتصل بي للحصول على عينات مجانية وكوبونات

ماذا؟:0086 18588475571

وي تشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
التحكم في الوصول بطاقة RFID، IC، بطاقة الهوية، الباركود وقت فتح الحاجز 0.2 ثانية
واجهة الاتصال RS-232 ، RS485 اتجاه التشغيل 2 اتجاه
محرك الحاجز محرك بدون فرش مستوى الحماية IP54
حجم السكن 1200 * 280 * 1000 مم وزن صافي 150 كجم
مادة 1.5-2 مم ، 304# الفولاذ المقاوم للصدأ سرعة المرور 30-40 شخص/دقيقة
رطوبة <95% بدون خرسانة درجة حرارة -15 إلى 75 درجة
استهلاك الطاقة تيار متردد 220 فولت، 50 هرتز أو تيار متردد 110 فولت، 60 هرتز عرض القناة 500-600 مم
MCBF 2،500،000 دورة
إبراز

0.2s Barrier Open/Close Time Security Turnstile Gate,RS-232 and RS485 Communication Interface Flap Barrier,2-Way Operation Direction Automatic Turnstile

,

RS-232 and RS485 Communication Interface Flap Barrier

,

2-Way Operation Direction Automatic Turnstile
اترك رسالة
منتوج وصف

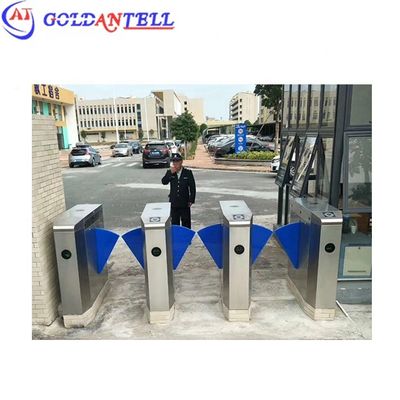

Security Passage Supermarket Entrance Intelligent Automatic Turnstile Electronic Gate Flap Barrier
Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 0 Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 1
Technology Specifications
Power consumption AC220V, 50Hz or AC110V, 60Hz (optional)
Housing Size 1200*280*1000mm
Housing material 1.5-2mm, 304# stainless steel, corrosion resistant
N.W. 150KG
Drive motor DC brushless motor
Channel width 500--600mm
Pass speed 30-40 persons/min
IP protection IP54
Input signal optional DC12V/dry/contact/RS485/RS232/Remote
Railing-off against power off Yes
Working environment temperature -15°C to 75 °C
Working environments indoor, outdoor
Relative humidity ≤95% coagulation free
MCBF 2,500,000 cycle
Flap Barrier Functions and Features
  1. Problem-self-checking function
  2. Multiple working modes including bi-directional card reading and photocell controlled passing
  3. Automatic arm opening during power failure and automatic holding when power returns
  4. Adjustable arm closing delay from 1-60 seconds
  5. Auto-reposition function cancels passing rights after timeout
  6. Alarm system for unauthorized passage attempts
  7. 485 interfaces for long-distance control
  8. Anti-rush function maintains arm position without open signal
  9. Dual anti-clipping protection (photocell and mechanical)
  10. Standard electrical interface for reader/writer integration
  11. Passenger counting with LED display
  12. Direction display for passenger guidance
  13. Card-reading with optional memory function
  14. Population control via software
  15. Quiet, stable operation
Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 2
About Shenzhen Goldantell Technologies Co., Ltd

We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems.

We have exported to more than 50 countries and established long-term partnerships with clients worldwide.

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 3

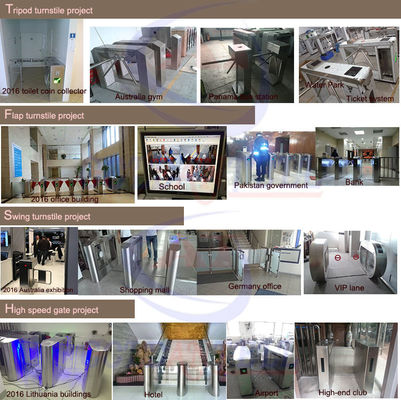

Global Customer Base

Our turnstiles have been sold to over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, and throughout Europe, Asia, Africa, and the Middle East.

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 4
Trade Terms
  • 30-day valid offer
  • Delivery within 7 days after payment
  • Payment methods: T/T, LC, Western Union, Escrow, PayPal
  • Packaging: Carton box + wooden case/crate
Delivery Options
  • Sea freight: 15-60 days depending on destination
  • Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
  • Air cargo: 2-7 days
Our Services
  • 24-hour response to inquiries
  • English-speaking sales and support team
  • OEM services including custom branding and packaging
  • Expert engineering support
Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 5
Pre-sale & After-sale Service
  • Pre-sale consultation to understand your requirements
  • Production updates with photos and testing videos
  • Comprehensive installation and usage guidance
  • Custom OEM/ODM solutions
  • 16-hour response time for support
Contact Details

Contact person: Vivian Zhou

WhatsApp: +86 13699796334

Wechat: junziyouxin

Skype: goldantell02

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 6

Goldantell turnstiles - factory price, high quality, welcome your inquiry!
